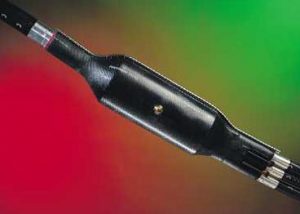

MA 5V, 6V, 7V, 7VL(XAGA 1000)
Joint Closure System for Pressurised Copper Telephone Networks
High performance heat-shrinkable closure for pressurised applications
Suitable for aerial, buried and ducted applications
Composite material provides high mechanical strength
Range of closures to suit all cable sizes Applicable for polyethylene and metal jacketed cables
Pre-installed valve for pressure access and measuring
Suitable for use with all standard connector systems
Up to 4 cables out at each end Wraparound closure suitable for both maintenance and new construction Interchangeable air valve/connector Hot melt adhesive designed specifically for pressurised closure applications
XAGA 1000
Sizing/ordering information (Dimensions in mm)
| Description | Splice bundle dia. max.(A) | Single cable dia
min.(B) |
Sheath opening nom. (L) | Recommended sum of branch cable
2 out 3 out 4 out max max max. |
Branch-off kit | ||
| XAGA-1000C-45/8-350 | 45 | 8 | 350 | 35 | – | – | BOKT-1000-05 |
| XAGA-1000C-62/15-250 | 62 | 15 | 250 | 52 | 40 | – | BOKT-1000-6 |
| XAGA-1000C-62/15-350 | 62 | 15 | 350 | 52 | 40 | – | BOKT-1000-6 |
| XAGA-1000C-62/15-500 | 62 | 15 | 500 | 52 | 40 | – | BOKT-1000-6 |
| XAGA-1000C-62/15-650 | 62 | 15 | 650 | 52 | 40 | – | BOKT-1000-6 |
| XAGA-1000C-92/30-300 | 92 | 30 | 300 | 82 | 70 | 58 | BOKT-1000-6 |
| XAGA-1000C-92/30-350 | 92 | 30 | 350 | 82 | 70 | 58 | BOKT-1000-6 |
| XAGA-1000C-92/30-500 | 92 | 30 | 500 | 82 | 70 | 58 | BOKT-1000-6 |
| XAGA-1000C-92/30-650 | 92 | 30 | 650 | 82 | 70 | 58 | BOKT-1000-6 |
| XAGA-1000-122/38-300 | 122 | 38 | 300 | 112 | 100 | 88 | BOKT-1000-6 |
| XAGA-1000-122/38-500 | 122 | 38 | 500 | 112 | 100 | 88 | BOKT-1000-6 |
| XAGA-1000-122/38-650 | 122 | 38 | 650 | 112 | 100 | 88 | BOKT-1000-6 |
| XAGA-1000-122/38-900 | 122 | 38 | 900 | 112 | 100 | 88 | BOKT-1000-6 |
| XAGA-1000-160/55-300 | 160 | 55 | 300 | 142 | 130 | 118 | BOKT-1000-7 |
| XAGA-1000-160/55-500 | 160 | 55 | 500 | 142 | 130 | 118 | BOKT-1000-7 |
| XAGA-1000-160/55-650 | 160 | 55 | 650 | 142 | 130 | 118 | BOKT-1000-7 |
| XAGA-1000-160/55-720 | 160 | 55 | 720 | 142 | 130 | 118 | BOKT-1000-7 |
| XAGA-1000-160/55-900 | 160 | 55 | 900 | 142 | 130 | 118 | BOKT-1000-7 |
| XAGA-1000-200/65-500 | 200 | 65 | 500 | 172 | 160 | 148 | BOKT-1000-7 |
| XAGA-1000-200/65-720 | 200 | 65 | 720 | 172 | 160 | 148 | BOKT-1000-7 |
| XAGA-1000-200/65-900 | 200 | 65 | 900 | 172 | 160 | 148 | BOKT-1000-7 |
Branch-off clips BOKT-1000-05, BOKT-1000-6 and BOKT-1000-7 must be ordered as a separate item.

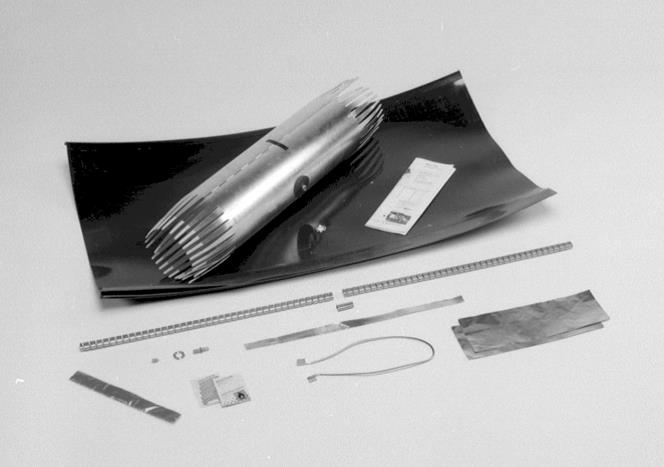

XAGA 1000 kit content
• Heat-shrinkable sleeve • Metal canister (2 half shells) • Flexible stainless steel channels • Underclips • Aluminium closing strip • Valve nut + 1 valve plug + 1 valve insert • Shield continuity wire • Cleaning tissue • Aluminium tape • Abrasive strip • Installation instruction |

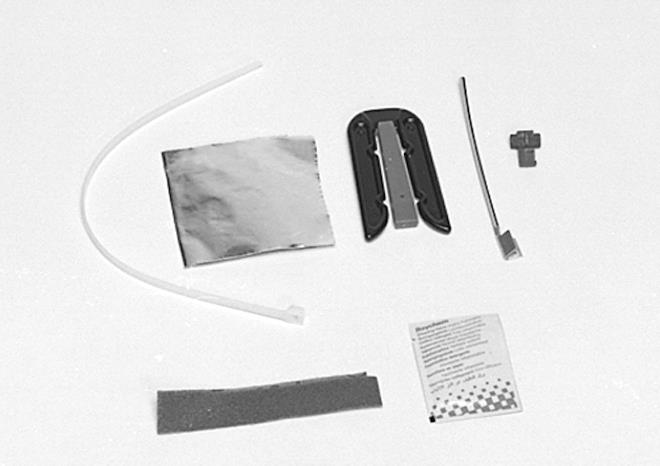

BOKT kit content
• Branch-off clip • Cleaning tissue • Abrasive strip • Tie wrap • Aluminium tape • Shield continuity wire + connector |

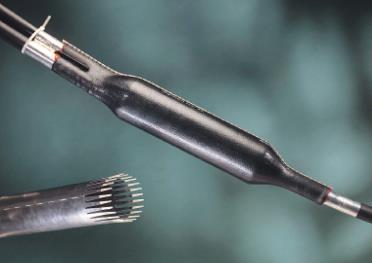

MA 5, 6, 7(XAGA 550)
Joint Closure System for Unpressurised Copper Telephone Networks
Heat-shrinkable composite joint closure system for environmental and mechanical protection of joints in
the unpressurised telephone network : aerial, buried or ducted, non filled or jelly filled, with polyethylene, lead, steel or aluminium sheaths.
Composite structure of the reinforced Rayfort sleeve offers an excellent resistance to mechanical abuse during and after the installation.
Integrated moisture barrier completely reconstitutes the cable sheath over the total splice area.
Hot-melt adhesive forms a watertight seal to the cable sheath.
A metal canister shapes and mechanically protects the splice bundle.
Up to 3 cables at each end can
be accommodated using three finger clips with hot-melt adhesive.
Installation indicators: heat sensitive paint and adhesive flow, white line
Extended size range can accommodate splices up to 3600 pair with any connector type.
Unlimited shelf life.
XAGA 550

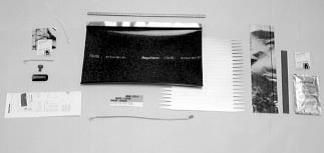

XAGA 550 Kit content
- Heat-shrinkable sleeve
- Metal canister (2 metal half shells)
- Self adhering aluminium strip
- Channels with underclip
- Branch-off kit
- Abrasive strip
- Desiccant (silicagel)
- Aluminium foil
- Cleaning tissue
- Shield continuity wire
- Installation procedure
Sizing/ordering information
Selection chart dimensions (mm)
| Description | Max. splice bundle diameter (A) | Min. cable diameter (B) | Nominal sheath opening (L) |
| XAGA 550-43/8-200 | 43 | 8 | 200 |
| XAGA 550-43/8-350 | 43 | 8 | 350 |
| XAGA 550-43/8-500 | 43 | 8 | 500 |
| XAGA 550-75/15-250 | 75 | 15 | 250 |
| XAGA 550-75/15-350 | 75 | 15 | 350 |
| XAGA 550-75/15-500 | 75 | 15 | 500 |
| XAGA 550-75/15-650 | 75 | 15 | 650 |
| XAGA 550-92/25-300 | 92 | 25 | 300 |
| XAGA 550-92/25-500 | 92 | 25 | 500 |
| XAGA 550-92/25-650 | 92 | 25 | 650 |
| XAGA 550-122/30-300 | 122 | 30 | 300 |
| XAGA 550-122/30-500 | 122 | 30 | 500 |
| XAGA 550-122/30-650 | 122 | 30 | 650 |
| XAGA-550-122/30-900 | 122 | 30 | 900 |
| XAGA 550-160/42-500 | 160 | 42 | 500 |
| XAGA 550-160/42-650 | 160 | 42 | 650 |
| XAGA 550-160/42-720 | 160 | 42 | 720 |
| XAGA-550-160/42-900 | 160 | 42 | 900 |
| XAGA 550-200/50-500 | 200 | 50 | 500 |
| XAGA 550-200/50-650 | 200 | 50 | 650 |
| XAGA 500-200/50-720 | 200 | 50 | 720 |
| XAGA-550-200/50-900 | 200 | 50 | 900 |
* Note for branched joints
The standard XAGA 550 kit will accommodate a maximum of 2 cables branched at one end. Branched joints with more cables require the use of one additional branch-off kit (BOKT-5S or 5M or 5L) per added cable. For joints with 2 or 3 cables in one end the overall diameter must be determined.

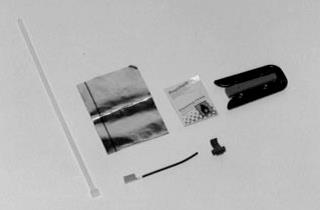

BOKT Kit content
- Branch off clip
- Shield continuity clip + connector
- Cleaning tissue
- Aluminium foil
- Tie wrap

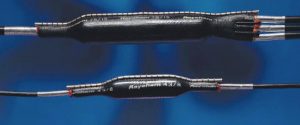

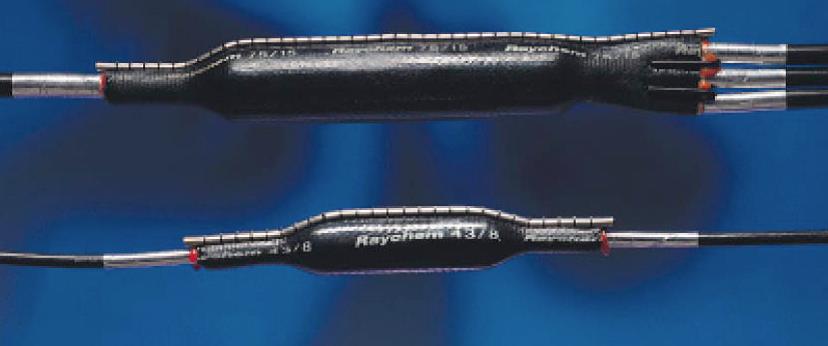

MA1, 2, 3, 4(XAGA 500)
Joint Closure System for Unpressurised Copper Telephone Networks
- Heat-shrinkable composite joint closure system for environmental and mechanical protection of joints in the unpressurised telephone network: aerial, buried or ducted, non filled or jelly filled cables with polyethylene, lead, steel or aluminium sheaths
- Composite structure of the reinforced Rayfort sleeve offers an excellent resistance to mechanical abuse during and after the installation
- Integrated moisture barrier completely reconstitutes the cable sheath over the total splice area
- Hot-melt adhesive forms a watertight seal to the cable sheath
- Supporting liner insulates, shapes and compacts the splice bundle
- Up to 3 cables at each end can be accommodated using three finger clips with hot-melt adhesive
- Installation indication: heat sensitive paint and adhesive flow, white line
- Extended size range can accommodate splices up to 800 pairs
- Unlimited shelf life
XAGA 500
Sizing/ordering information
Selection chart dimensions (mm)
| Description | Max. splice bundle
diameter(A) |
Min. cable
diameter (B) |
Nominal
sheath opening (L) |
| XAGA 500-43/8-150 | 43 | 8 | 150 |
| XAGA 500-43/8-300 | 43 | 8 | 300 |
| XAGA 500-55/12-150 | 55 | 12 | 150 |
| XAGA 500-55/12-300 | 55 | 12 | 300 |
| XAGA 500-75/15-240 | 75 | 15 | 240 |
| XAGA 500-75/15-300 | 75 | 15 | 300 |
| XAGA 500-75/15-400 | 75 | 15 | 400 |
| XAGA 500-100/25-260 | 100 | 25 | 260 |
| XAGA 500-100/25-460 | 100 | 25 | 460 |
| XAGA 500-100/25-500 | 100 | 25 | 500 |
| XAGA 500-125/30-265 | 125 | 30 | 265 |
| XAGA 500-125/30-460 | 125 | 30 | 460 |
| XAGA 500-125/30-500 | 125 | 30 | 500 |
Kit contentHeat-shrinkable sleeve Channels with underclip Flexible liner Cleaning tissue Abrasive strip Desiccant (Silicagel) Aluminium foil Branch-off kit Shield continuity wire Bondline gauge Installation instruction |
BOKT kit contentBranch off clip Shield continuity wire + connector Cleaning tissue Aluminium foil Tie wrap |
